GL1100 driven flange special procedure |
![]() |

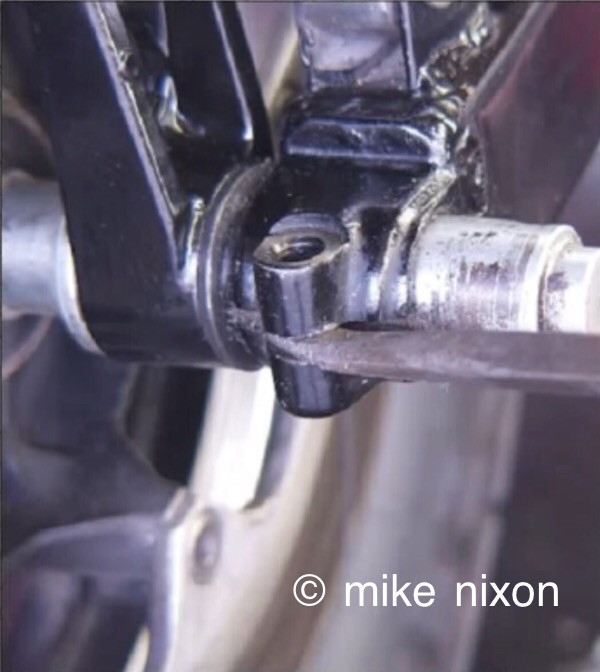

Step one: Both halves of the drive splines have been adequately greased with a good high percentage moly grease and the wheel installed. Lightly grease and install the axle, then gently spread the axle clamp. Note that the pinch bolt is not yet replaced. |
![]() |

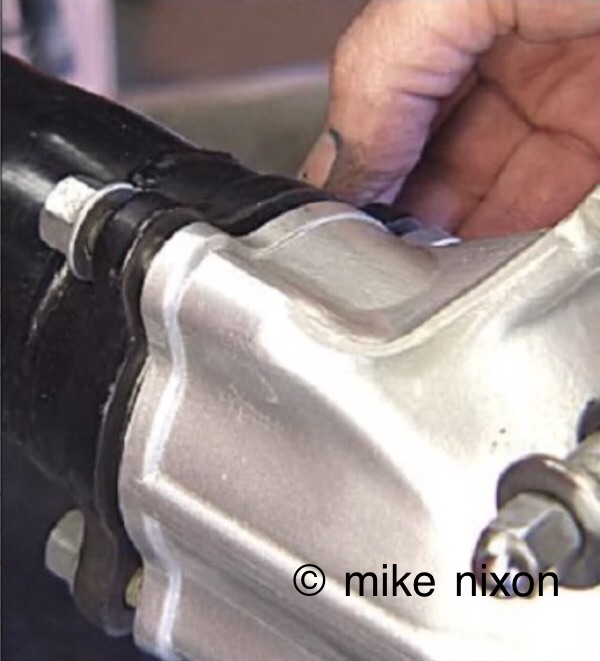

Step two: Loosen the final drive assembly attaching nuts. About halfway off the studs is enough. |
![]() |

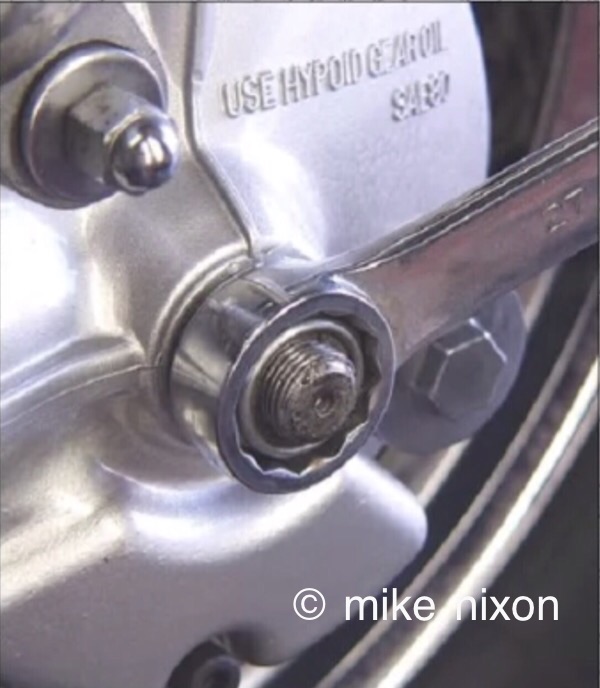

Step three: Tighten the axle. Don't be a gorilla. Tight is tight enough. |
![]() |

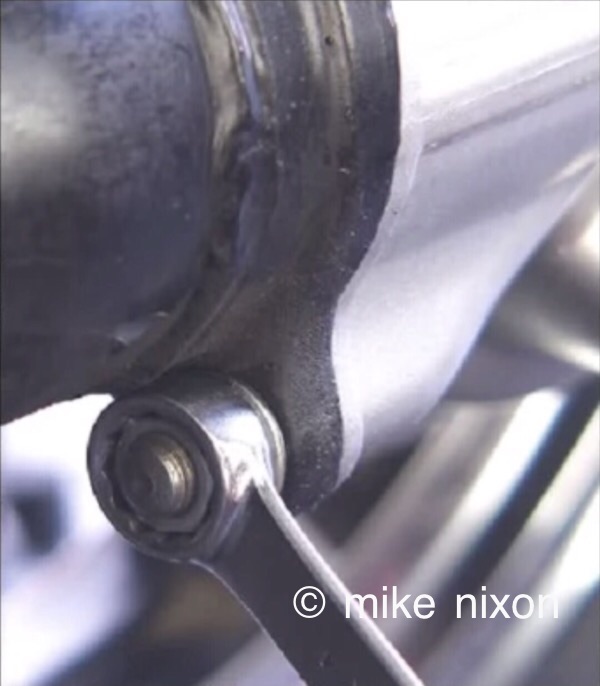

Step four: Tighten the final drive attaching nuts. |
![]() |

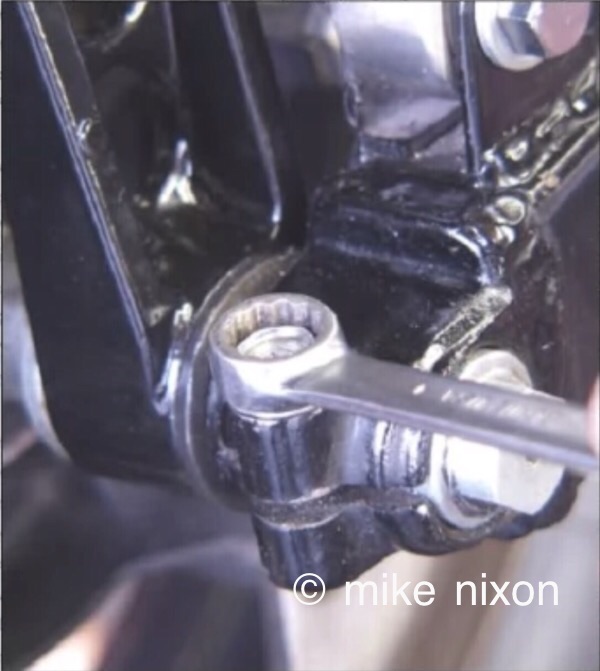

Step five: Tighten the pinch bolt. |
