Powersports Vehicle Systems
All of these vehicles function in some respects very much the same. They all have a number of systems (related group of parts or components) that work together to provide safe, dependable mobility. Each system has a special job that in most cases is the same in every vehicle type. The engine is one such system. Powersports vehicles all have internal combustion engines. Internal combustion engines burn fuel to produce heat and pressure. The engine channels this pressure into useful mechanical work. This provides the power which turns the vehicle's drive wheel(s) or propulsion system.
The Engine
The Engine's Parts
The powersports engine has an overall housing called the crankcase, a principle rotating part within known as the crankshaft, supporting parts called connecting rods, pistons, piston rings, and cylinders, and coverings for the cylinders called cylinder heads. These are the basic engine parts. They are used to trap, compress, and consume a quantity of air that has been misted with a burnable fuel. To do this, the engine must perform these four steps:
1. Create a vacuum which draws the air and fuel mist from the fuel system into the cylinder
2. Compress this mixture to make its burn more vigorously when ignited
3. Ignite this mixture and mechanically convert the resulting pressure into useful work
4. Remove the combustion's waste products in preparation for repeating the process
The Four-Stroke Engine
Most powersports products have a type of engine called a four-stroke engine. This engine requires four strokes of its piston to complete the four events just described. The four-stroke engine is dealt with more fully in Chapter 11.
The Two-Stroke Engine
The two-stroke engine is also found in some powersports products, although recent environmental regulations and societal pressures are limiting its use. The two-stroke engine produces power every crankshaft revolution instead of every other revolution of the crankshaft as in the four-stroke engine, and with fewer parts is much lighter in weight, making it a far more efficient producer of power. Chapter 12 is dedicated to the more powerful but less common two-stroke powersports engine.
The Fuel System
The powersports vehicle's fuel system stores fuel and supplies it to the engine. The system delivers this fuel to the engine in quantities and air/fuel ratios suited to the engine's rpm and load. The system includes the fuel tank, fuel shutoff valve, fuel filter, fuel lines, air cleaner, and one of two different types of fuel delivery devices.
The Carburetor
The carburetor is the older and simpler fuel delivery device. Basically a puddle of fuel is dribbled into the passing intake airstream. The air and fuel are trapped and compressed in the engine's cylinder and burned to produce pressure. As the throttle, the carburetor's air valve, is opened, more air and fuel pass through the carburetor and into the engine. This results in increased engine speed and power. A crude system, but nonetheless well developed and quite effective, simple, and economical.
Fuel Injection
Fuel injection replaced carburetors on powersports vehicles during roughly a 25-year period beginning in the mid 1980s, lagging somewhat behind the car world mainly due to costs. The more modern fuel injection system replaces the carburetor with an impressive collection of computerized electronics, for a more reliable, lower maintenance system that gives superior performance over a wider range of conditions than was possible with the carburetor, and does it while lowering vehicle emissions and, not the least, making the engine easier to start and faster to warm up. The fuel injection system is thoroughly explored in Chapter 15.
The Electrical System
All powersports vehicles use electricity in some way. Even vehicles lacking a battery still have ignition systems. Many also have batteries that supply electricity for electric starting, ignition, and lighting. The powersports vehicle's electrical system consists of four subsystems:
Charging system
Ignition system
Starting system
Accessory system
The Charging System
Just as with your cell phone, the powersports battery can provide electrical energy to the electrical systems for only so long, and then it's energy must be replenished; it must be "recharged." The charging system combines mechanical energy (engine rotation) with magnetism to produce electrical energy for battery charging.
The Ignition System
The ignition system ignites the air-fuel mixture in the combustion chamber, to start the combustion process inside the cylinder with which the engine will make power. The system produces an electric arc at the spark plug. Several parts make up the ignition system. We'll explore the ignition system in depth in a later chapter.
The Starting System
An electric starting system is used on many powersports vehicles, eliminating the need to kickstart the engine. However, not all powersports vehicles have an electric starter. The electric starting system is built around an electric motor. The electric motor is geared down to increase torque for turning the engine's crankshaft. So severe is this motor's electrical burden that the electric starter can quickly drain the battery if over-used, and to prevent overheating must be used only for short periods.
The Accessory System
The accessory system includes all electrical components and wiring other than the charging, ignition and starting systems. Lights, horn, turnsignals, and warning lights are included in the accessory system.
Engine Cooling
Powersports engines produce heat and must therefore be cooled down to ensure durability. In the combustion process, a great amount of heat is produced. Some of this heat is used for power production (piston movement). The rest is conducted away from the engine to prevent engine damage. These engines use air cooling, forced air cooling, liquid cooling, or oil cooling, and in some cases a combination of these cooling methods.
Air Cooling
The air-cooled engine transfers heat directly into the air by means of cooling fins. Cooling fins provide an exaggerated amount of surface area for exposure to outside air, allowing for greater heat transfer. The air cooling method is the most traditional for powersports vehicles, but is beginning to be superseded by more efficient cooling methods in modern vehicles.
Forced Air Cooling
Many powersports vehicles are forced-air cooled. This simply means they have fans and/or metal shrouding which supplement the air-cooling effect explained above. The fans are either engine or battery powered. A few forced air cooled engines do not have any metal shrouding, but most make use of shrouding to enhance the fan effect.
Liquid Cooling
The liquid-cooled engine, the most common today, works just as it does in the familiar car. Engine heat is conducted into a water-based coolant circulating through cavities in the cylinder, head, and crankcase. The hot coolant is then piped to a radiator which radiates the heat to the outside air. Liquid cooling maintains a more consistent engine operating temperature despite varying operating conditions, and therefore is the choice of engine manufacturers who must meet demanding power and emissions-control targets. Liquid-cooled engines are also quieter than air-cooled ones, an important feature in today's vehicles.
Oil cooling
A few powersports engines have piston aircraft derived cavities cast around their combustion chambers which flow oil instead of water-based coolant. This oil circulates and removes the heat, before being sent to an oversized oil cooler. This is an oil-based cooling system and is similar in function to a liquid-cooling system, only oil is used instead of water.
The Lubrication System
The lubrication system reduces friction within the engine. There are three types of four-stroke engine lubrication systems: wet sump, dry sump and semi-dry sump.
Wet Sump vs. Dry Sump
The sump is the lowest portion of the engine crankcase. The wet sump design keeps the oil within the crankcase. The dry sump system on the other hand contains the oil in a separate oil cavity or tank, usually to allow the engine to sit lower in the frame or for other reasons.
Semi-Dry Sump
Although not all manufacturers use the term, many of their racing or high performance models use what could be called the semi-dry sump lubrication system. In the semi-dry sump system, oil is contained in the wet sump manner, but is nonetheless segregated as much as is practical for many of the same benefits as are available with the true dry sump system. Kawasaki engines for example have the oil pump circulated oil returned to the transmission, far from the crankshaft, mimicking a dry sump arrangement.
Four-Stroke vs. Two-Stroke
Engine lubrication differs greatly between two- and four-stroke engines. The four-stroke engine circulates the oil throughout the engine. The two-stroke engine by design burns some of its lubricating oil after having flung it around inside the engine. Two lubrication methods are used in two-stroke engines: premixed fuel and oil, and oil injection. Pre-mix lubrication describes mixing oil into the fuel by hand before it goes into the fuel tank, once a common technique. More modern oil injection lubrication is automatically added to the engine separately from the fuel but at the same time and place as the fuel is added.
The Driveline
The motorcycle driveline consists of the primary drive, the transmission, and the final drive. As a technician, you will service these areas frequently.
Primary Drive
The primary drive is the crankshaft-to-transmission portion of the driveline. It slows down the transmission to about one-third the rpm of the crankshaft. The slower speed permits smaller gears to be used, for an attractively compact power transmission unit. The primary drive also houses the clutch. The clutch provides a means of connecting and disconnecting the engine from the transmission, for purposes of starts and stops. Engagement of the transmission gears is smoother when the clutch is used during shifting.
Transmission
The transmission is a torque multiplier. A series of gears in the transmission can be selected in different combinations, either manually or automatically. This provides a wide variance in rear wheel speed while the engine operates within a narrow speed range. This allows the engine's torque to be matched to the rear wheel's load in every riding environment.
Final Drive
The last link in the motorcycle driveline is the final drive system. The powersports vehicle's final drive provides motion to the rear wheel(s). There are three types of motorcycle, ATV, and utility vehicle final drives: chain, belt, and shaft. Personal watercraft are generally direct drive at drive end, and snowmobiles are almost all chain final drive.
The Chassis
The motorcycle chassis includes the frame plus everything but the engine, although increasingly today the engine is designed to be a frame member. The frame, and front and rear suspension components, are subparts of the chassis. Chapter 7 is dedicated to the chassis and its parts.
Frame
The motorcycle frame provides a means of rigidly mounting the engine, suspension, and accessories. Many different frame designs are used. The frame must be strong to support the rider and maintain wheel alignment. It must also be light enough to provide good performance.
Suspension
The suspension system uses springs and hydraulic dampers. These smooth the ride of the motorcycle. Modern motorcycles have suspension units at both the front and the rear, and increasingly, modern powersports vehicles are beginning to boast of computer-controlled suspension that adjusts with the needs and inputs.
Wheels, Tires, and Brakes
Wheels and tires support the motorcycle, provide traction, and deliver engine power to the pavement. Motorcycles have either solid wheels or wire spoke wheels. Tires provide traction for moving the motorcycle, absorbing bumps, and assisting the brakes in stopping. Today's tires are available in many different rubber compounds and tread designs. Brakes slow and stop the vehicle. Powersports vehicle brakes are made in both disc and drum styles, and a third heavy equipment derived clutch-type "wet" brake is also found on some ATVs and utility vehicles.
Summary

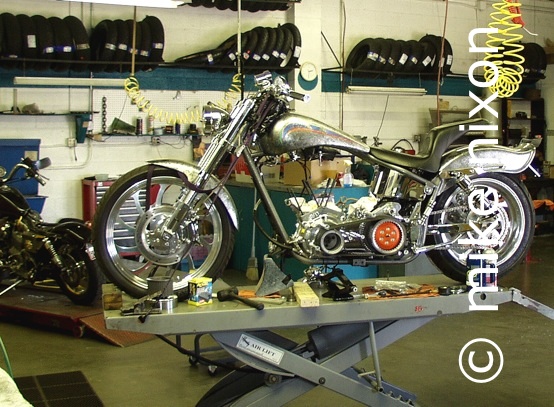

Powersports vehicles are exciting. Motorcycle repair work offers a constant powersports environment and good pay, and there is also the satisfaction of skilled work with one's hands. The technician's six responsibilities are maintenance, pre-delivery service, troubleshooting, repair, restoration, and custom work. The technician must be a self-starter and must also be trained. The motorcycle's complexity demands that entry-level technicians be graduates of formal training programs. These programs are offered by high schools, community colleges, and public and private vocational schools. After hire, techs may take advantage of advanced training offered by the OEMs. Experienced powersports technicians average $40,000 in yearly earnings, and many techs receive such benefits as paid vacations, sick leave, and health insurance. There are different pay systems, and techs are evaluated periodically as to their efficiency and productivity. In some parts of the U.S., powersports repair is seasonal work.
There are many positions other than that of technician. These include service writer, service manager, parts manager, general manager, and parts counterperson. Many techs go on to work for one of the manufacturers. Employment opportunities and working conditions vary. This is especially true between dealerships and independents.
Powersports vehicles are made up of motorcycles, ATVs, scooters, personal watercraft, snowmobiles, utility vehicles, recreational utility vehicles, and electric vehicles. There are many different categories of each, for example sport motorcycles, ATVs, and snowmobiles. Powersports vehicles use internal combustion engines. These engines change the heat energy of burning fuel into useful mechanical work. Most are the four-stroke type, though the two-stroke engine continues in limited service. They may either be carbureted or fuel-injected. Powersports vehicles have to varying degrees some kind of electrical system. Included in the electrical system is the ignition system. Many powersports vehicles also have a battery charging system, and systems for starting the motorcycle.
The powersports engine is air, forced-air, liquid, or oil cooled. The four-stroke engine also has either a dry sump, wet sump, or semi dry sump lubrication system. Two-stroke engines use either pre-mix or oil injection lubrication.
The motorcycle driveline is made up of the primary drive, the transmission, and the final or secondary drive. The motorcycle is held together by a chassis, which includes the frame and everything except the engine and its supporting systems. The sub-parts are the frame, the suspension, and the wheels, tires, and brakes.
