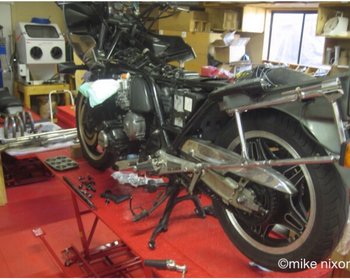

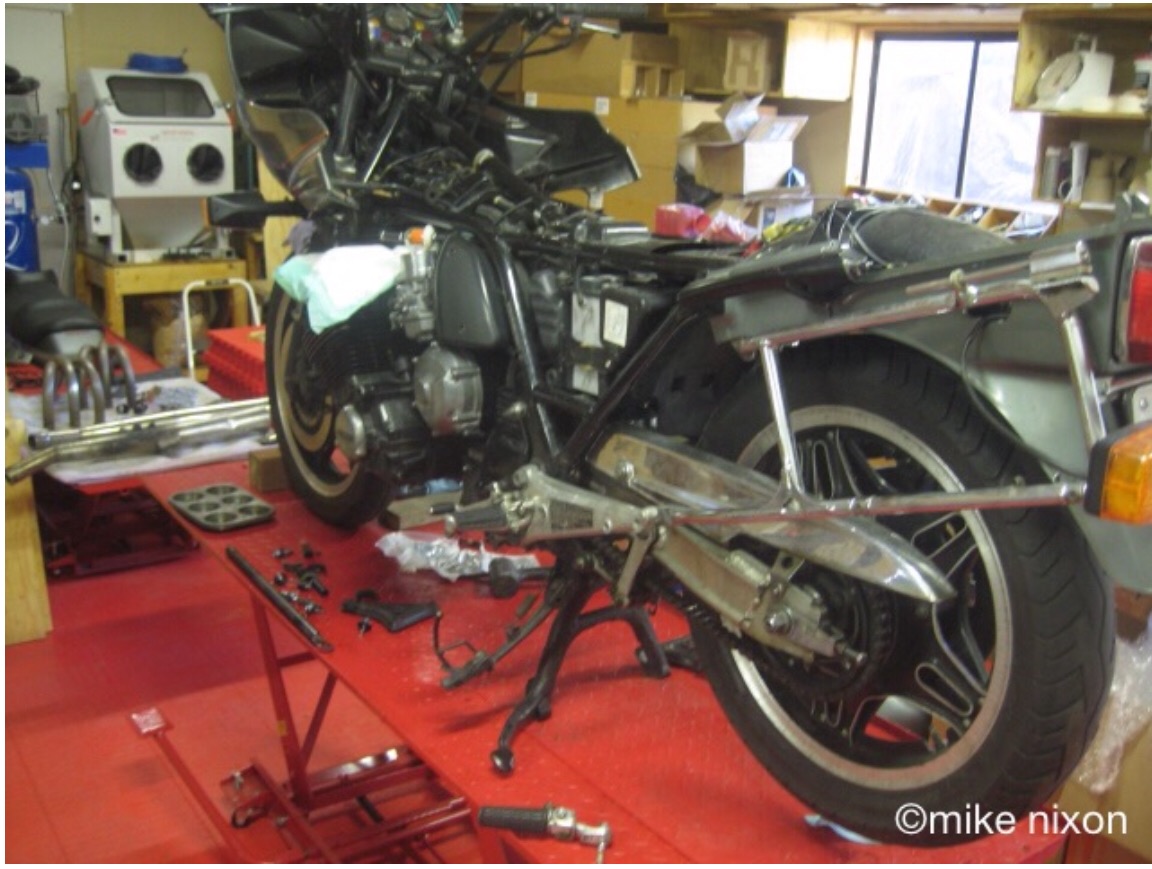

A project I took on a couple years ago. A 1981 CBX1000 the customer purchased online out of state and when picked up would barely run and almost didn't make it home. This is my shop. Starting on the bike. |

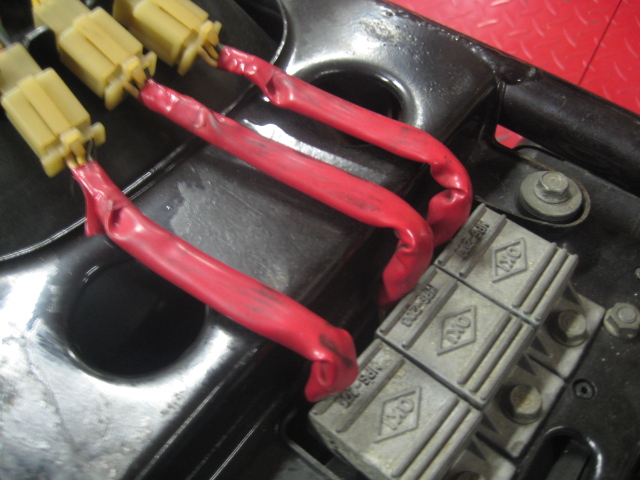

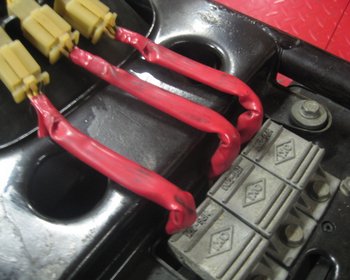

Igniton spark units missinstalled. |

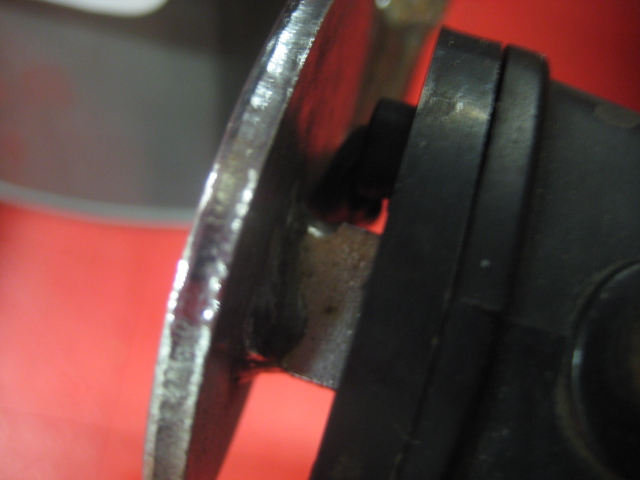

Turnsignal mounts wacked. |
|
|
|

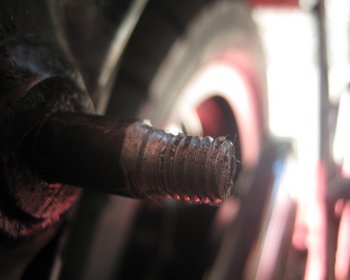

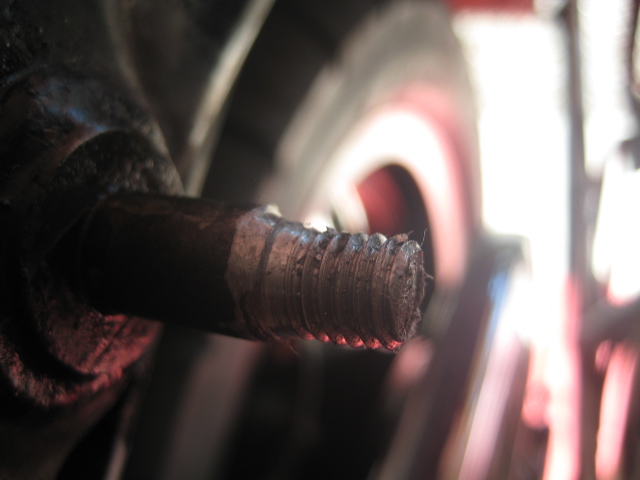

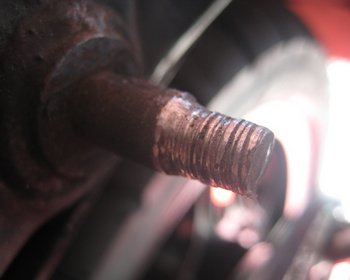

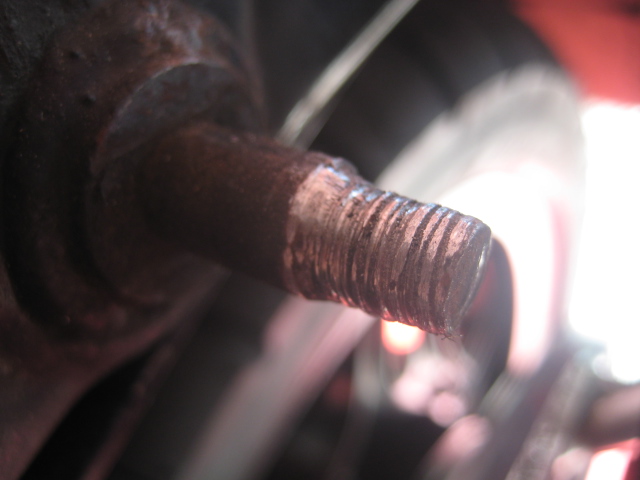

Seat mounting studs stripped. |
Repaired. |

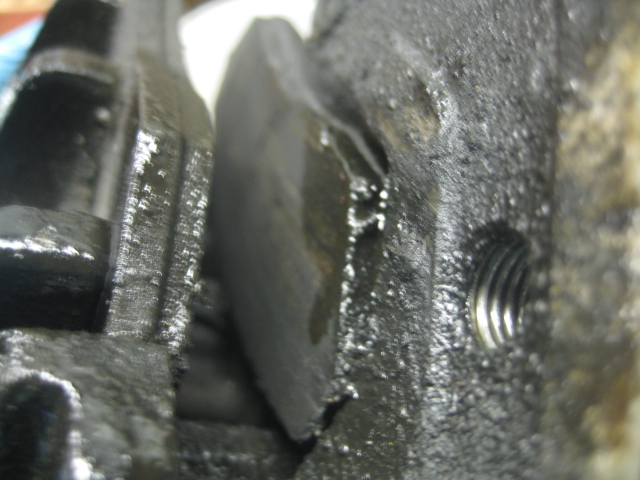

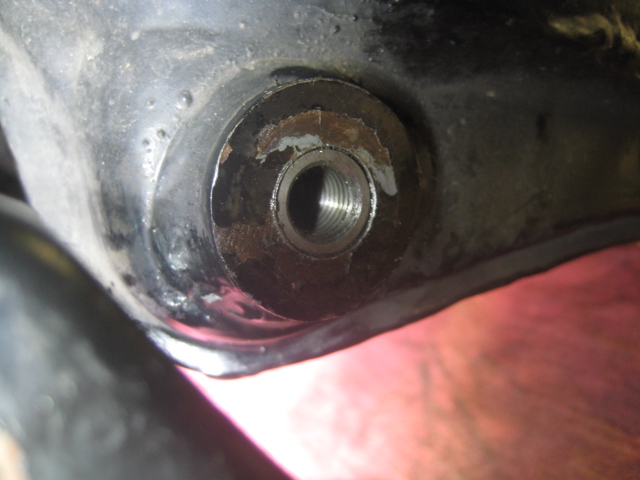

Engine mounting threads stripped in frame. This happens from not correctly aligning engine after it has been raised back up from removing the carburetors. |
|
|
|

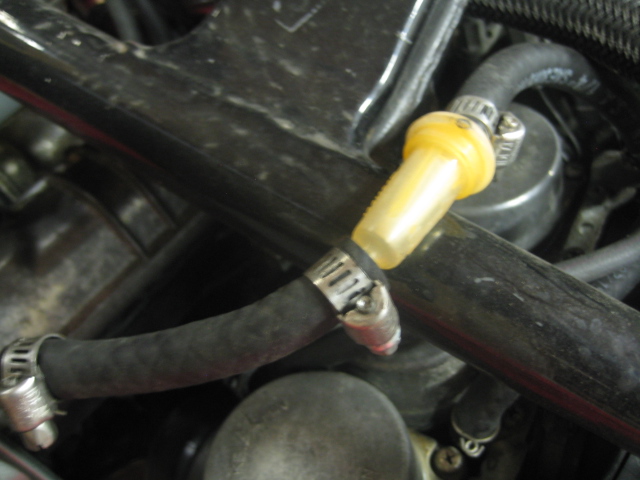

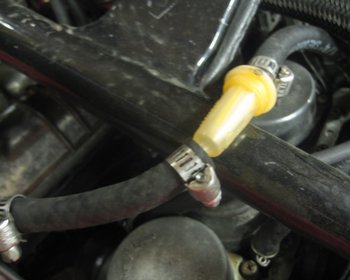

Speaking of the carburetors, note mis-routed fuel line and inappropriately small inline filter. |

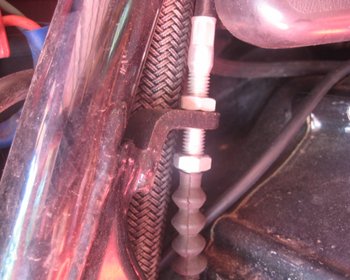

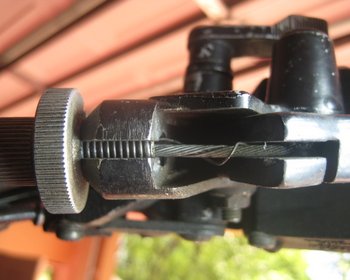

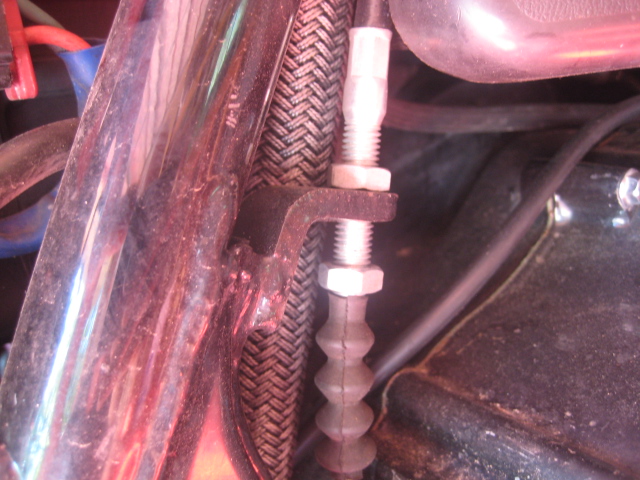

This is the way the bike came to me. The clutch cable is loose. |

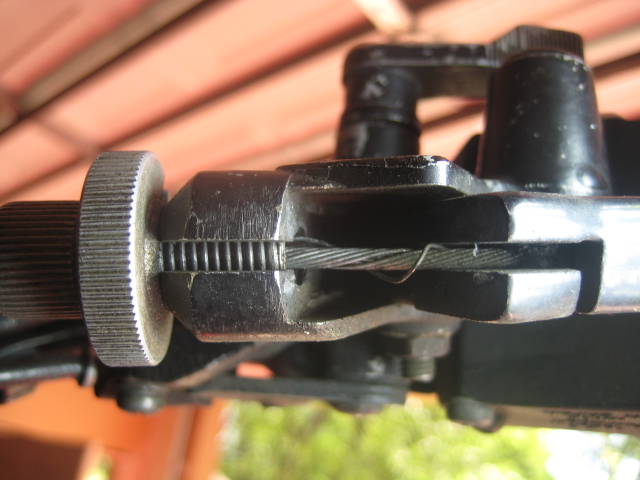

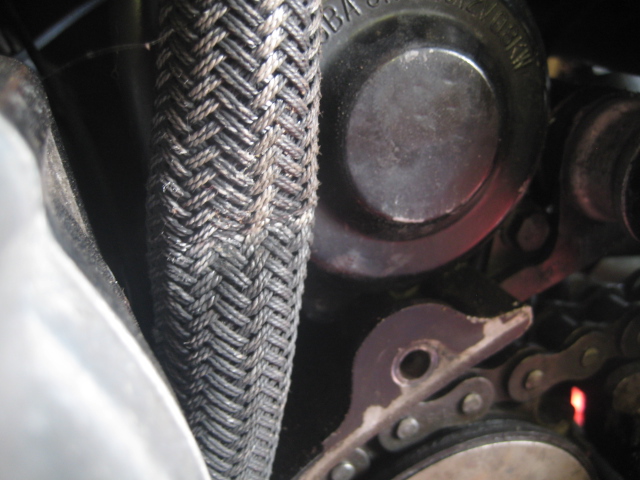

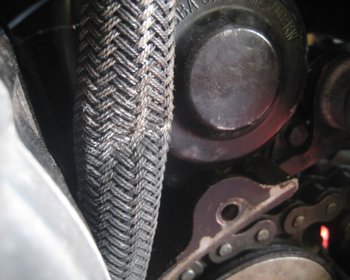

The cable was also badly frayed. This is usually from incorrectly handling the cable, using pliers for one thing. |
|
|
|

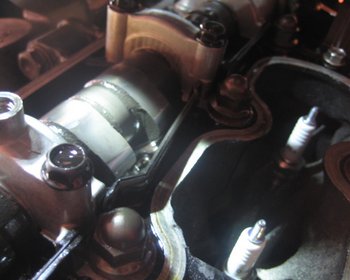

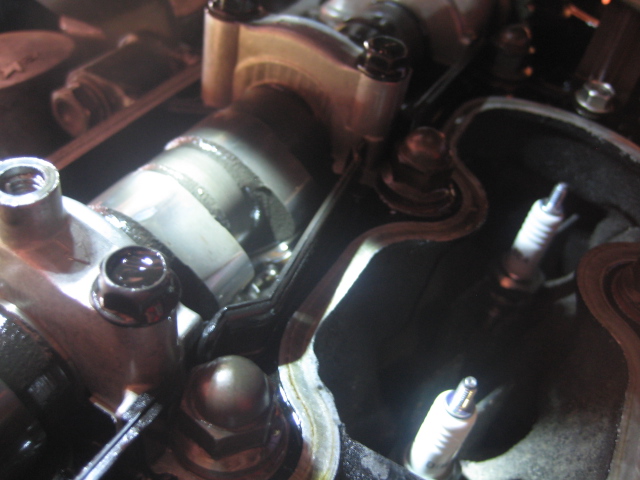

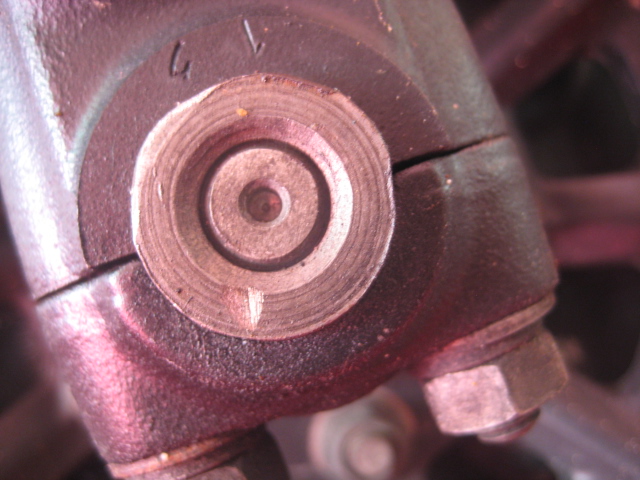

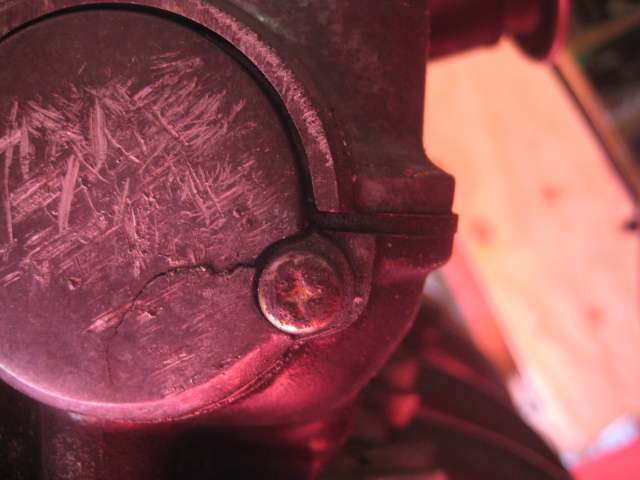

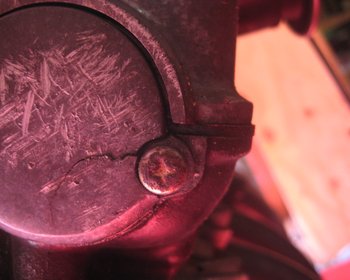

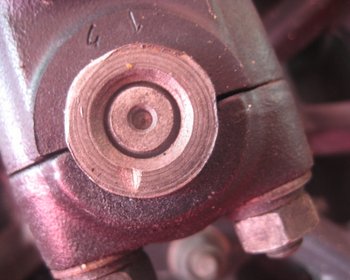

Broken cam end cap. |

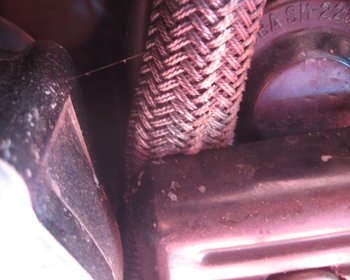

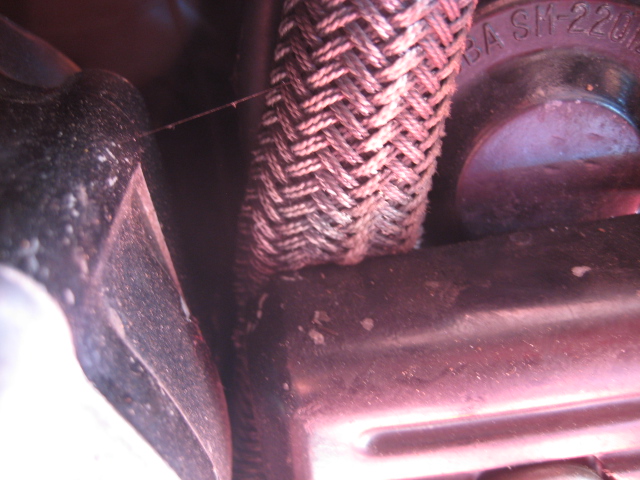

Pinched oil cooler hose. This happens from not installing the engine correctly. |
The result. |
|
|
|

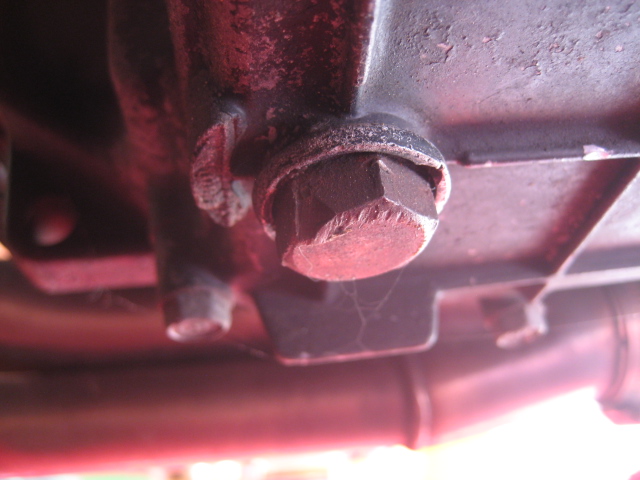

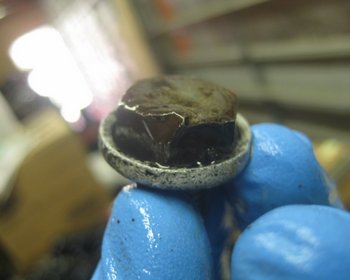

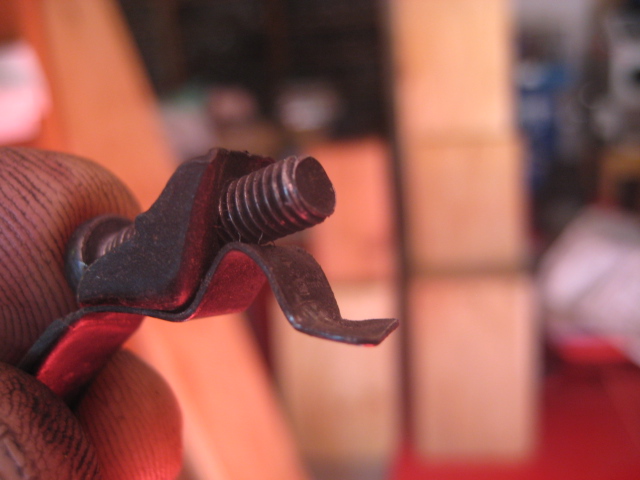

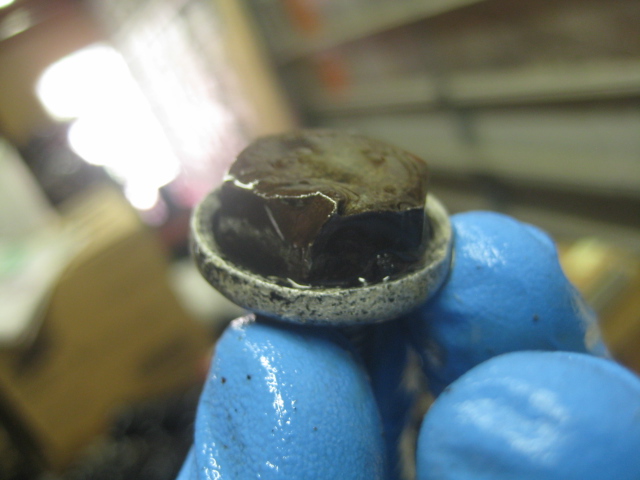

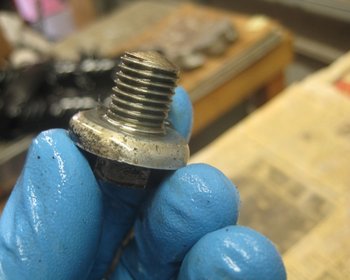

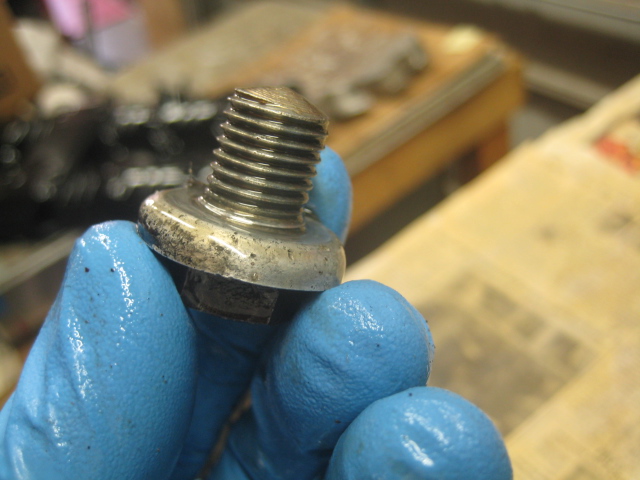

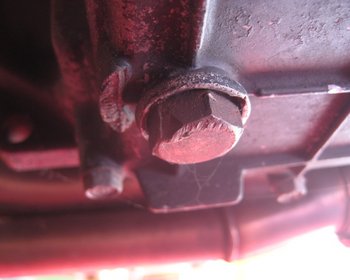

Mushroomed drain plug sealing washer. Also the plug itself is buggered up. |
More. |
More. |
|
|
|

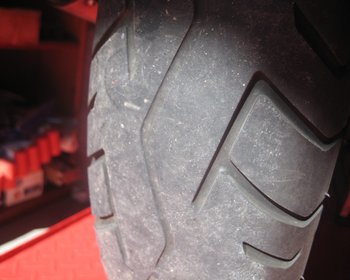

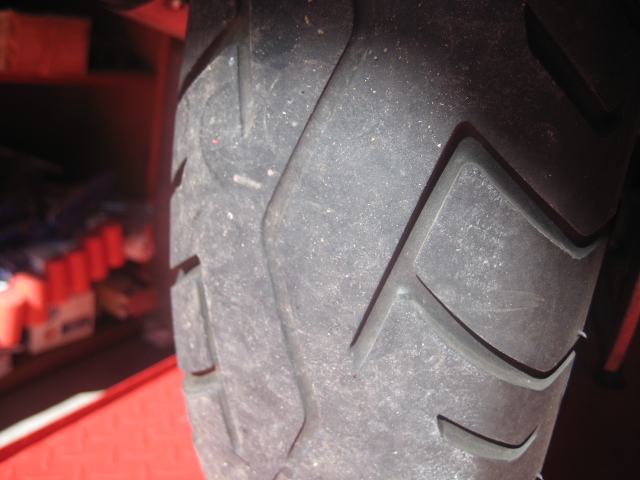

Bald rear tire. |

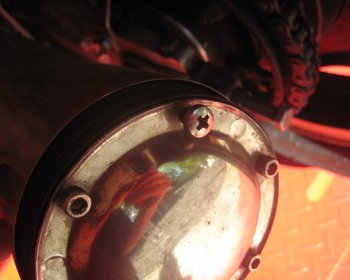

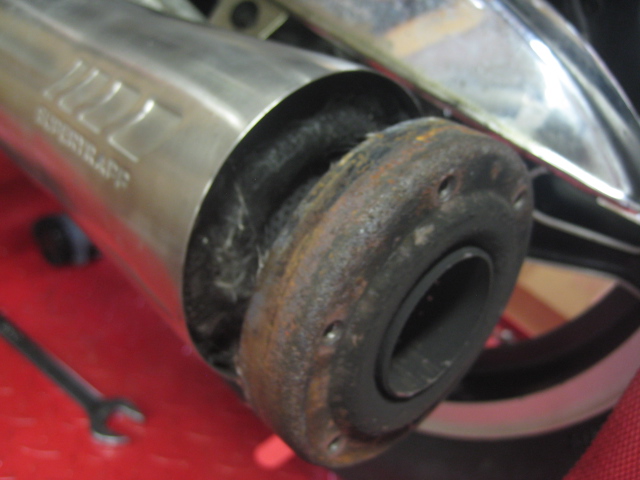

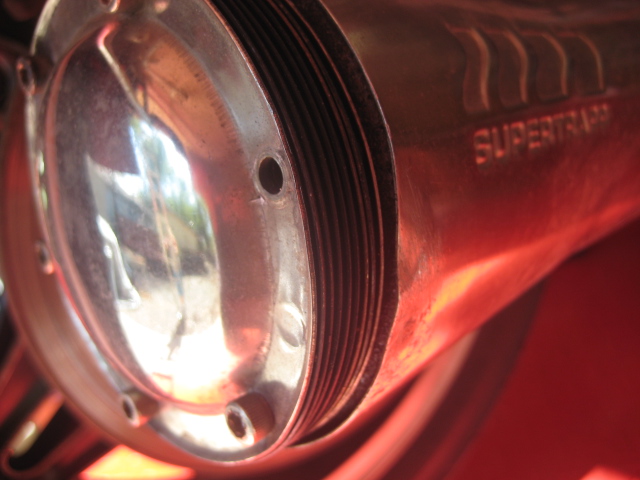

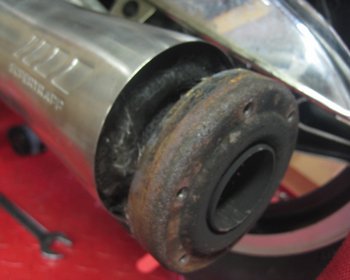

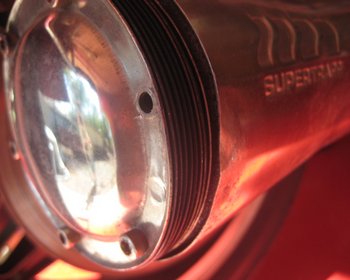

Supertrapp exhaust wacked. |
More. |
|
|
|

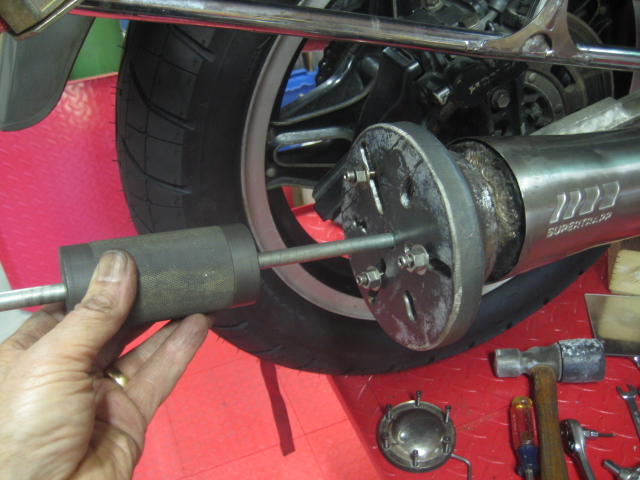

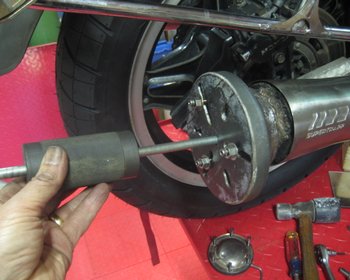

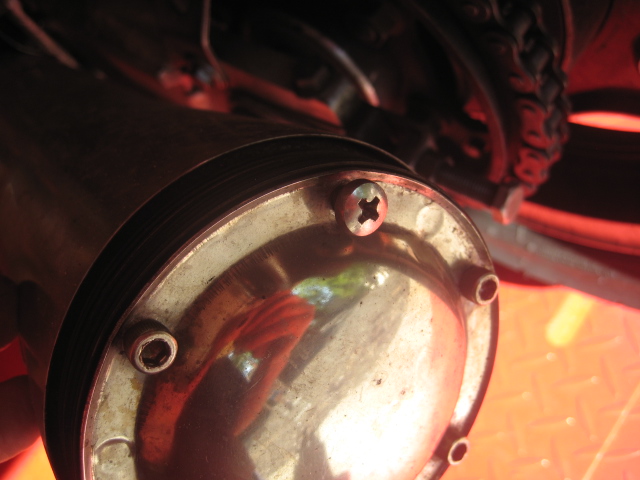

Had to remove the baffles and repair the mounting threads. |
More. |

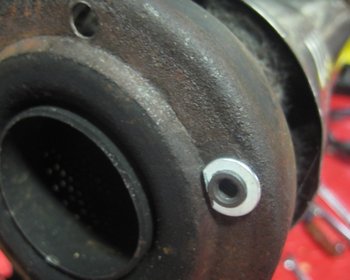

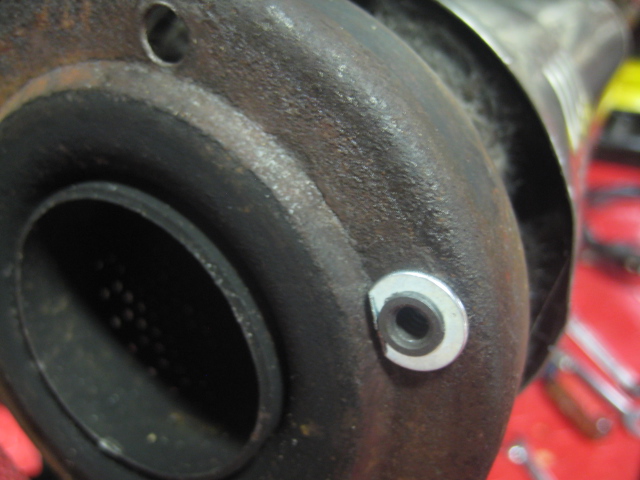

New thread inserts. |
|
|
|

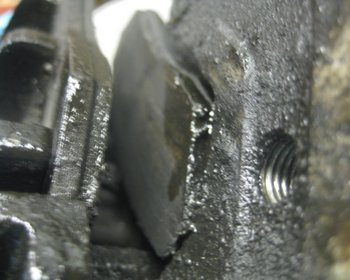

The front axle was installed incorrectly. |

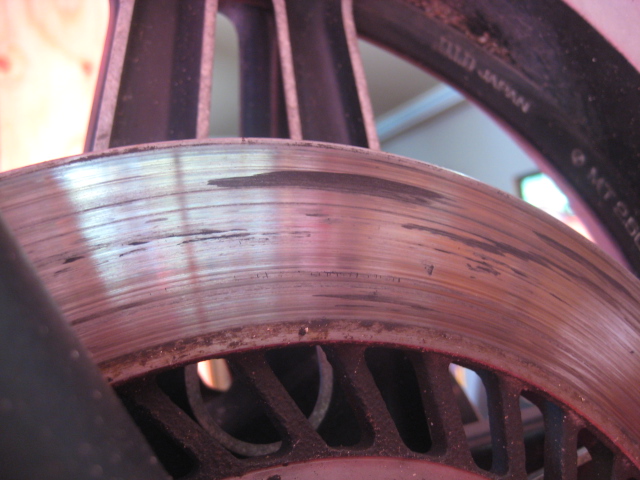

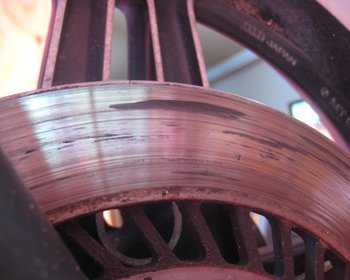

That's oil on the front brake discs. |

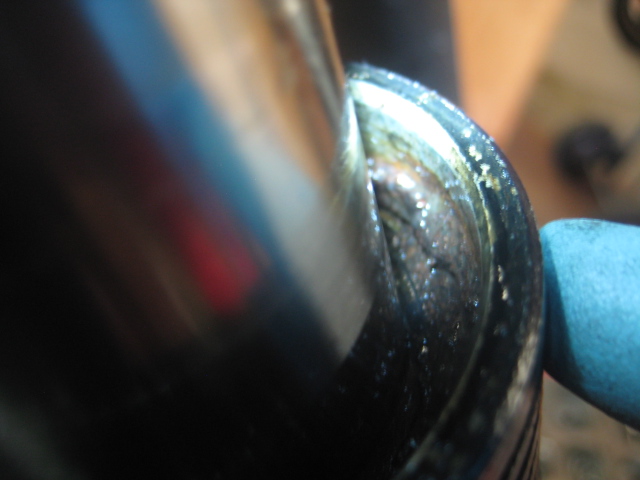

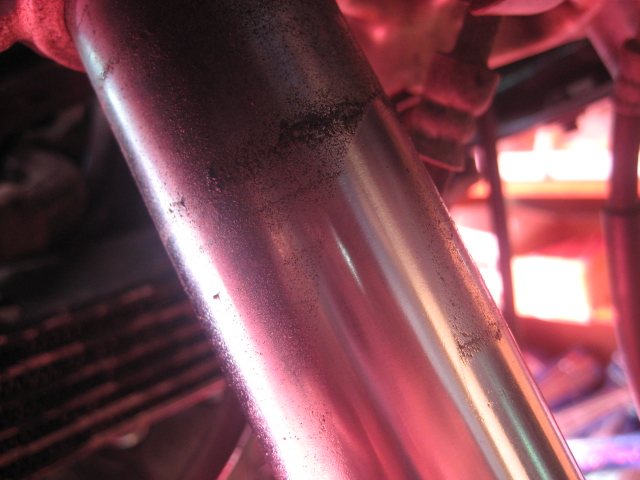

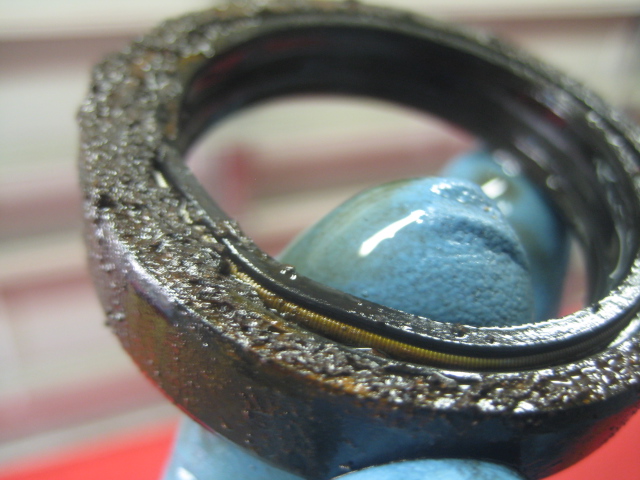

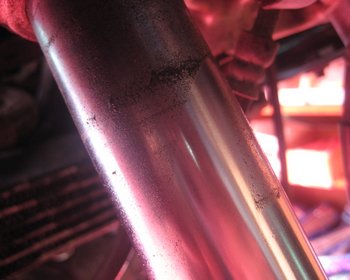

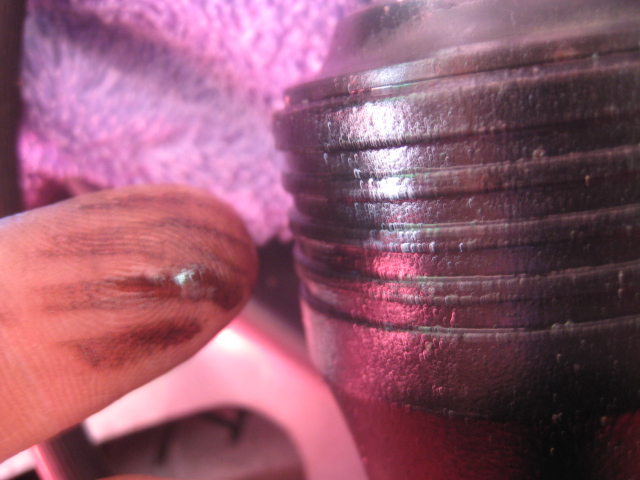

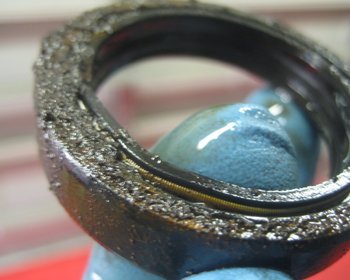

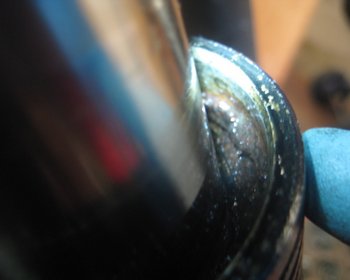

The reason, fork seal oil leak. |
|
|
|
More. |
More. |
More. |
|
|
|

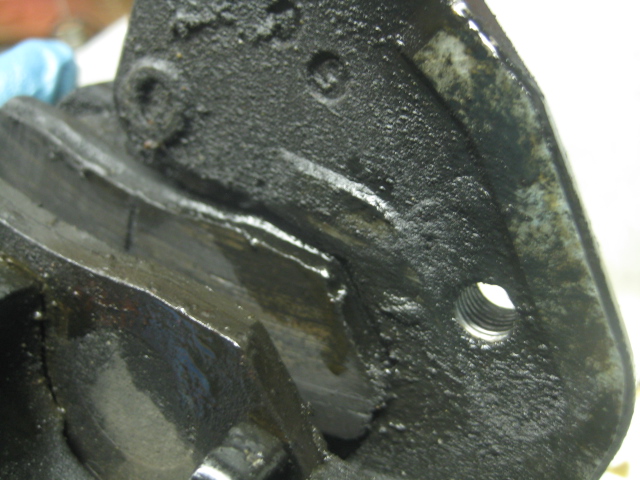

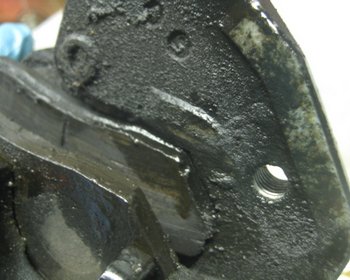

Note the oil all over the brake caliper. |
More. |

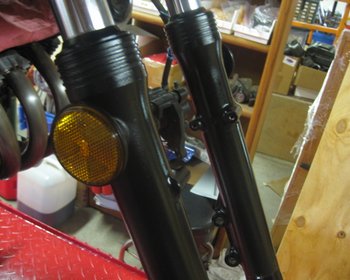

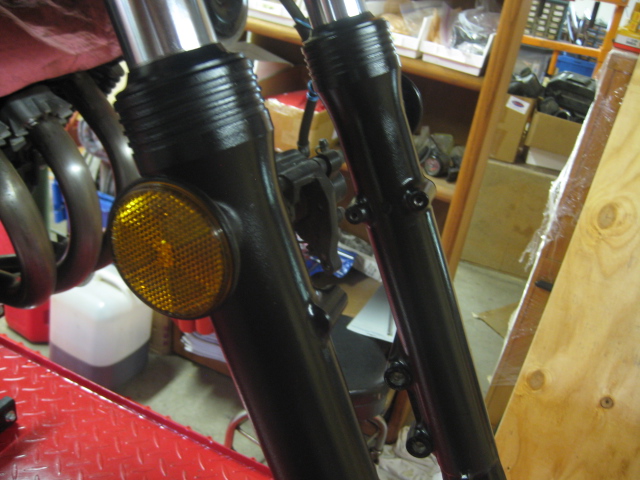

Newly set up forks. |
|
|
|

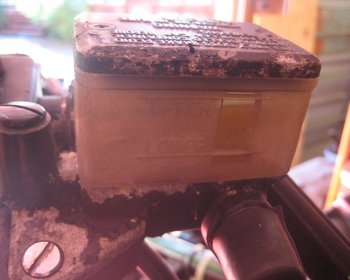

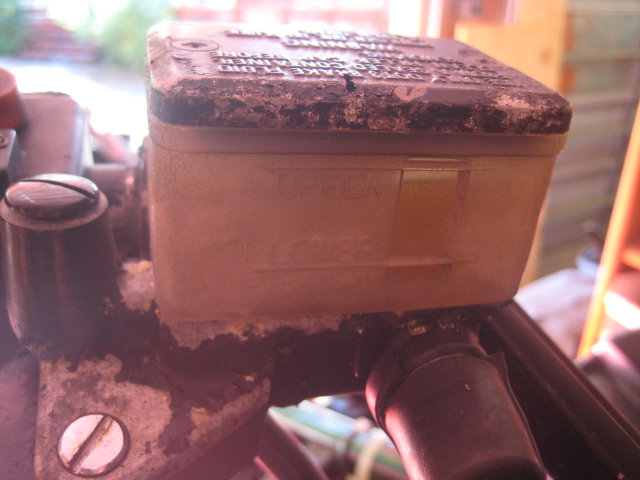

Grubby brake master cylinder. |
More. |
Redone. |
|
|
|
One of the oil pool plastes is installed incorrectly. It was hammered in even and broken. |

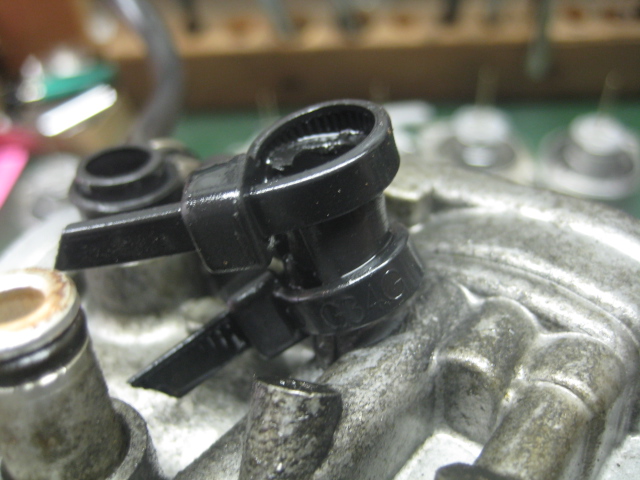

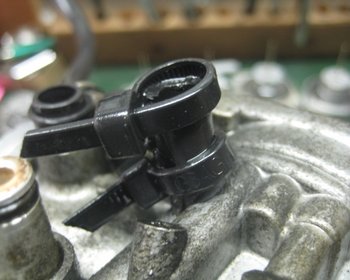

Carbs are a mess. Cable tied float bowl vents. |

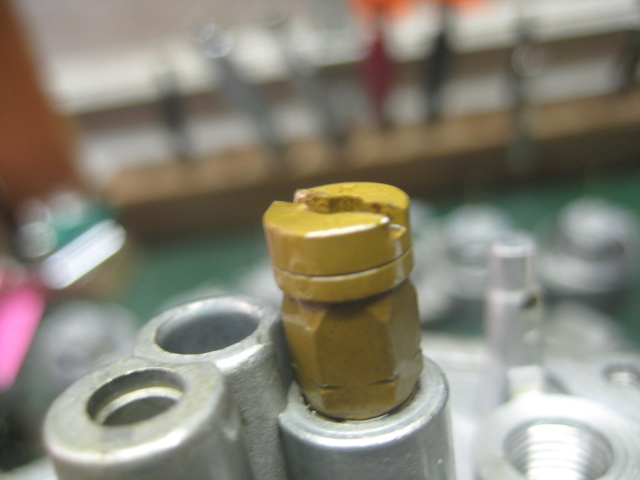

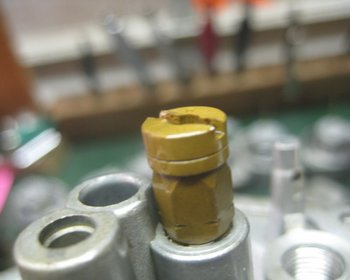

Mikuni jets in these Keihin carbs! |
|
|
|

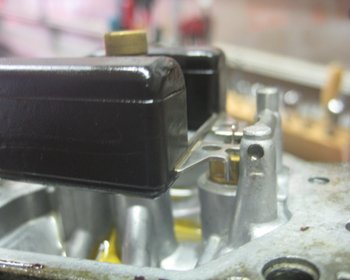

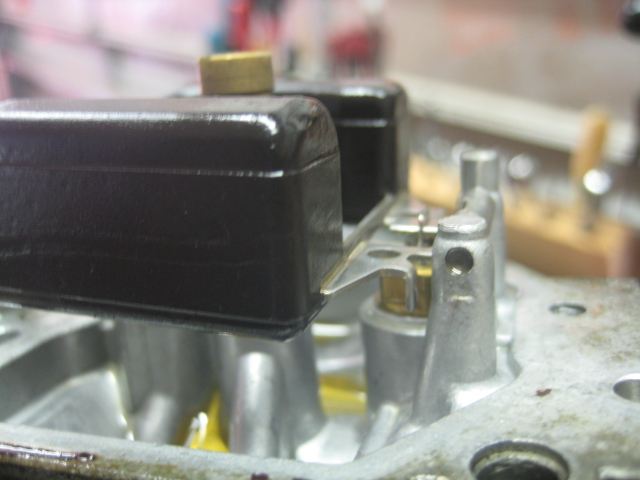

One of the six floats upside-down! How can someone do this? |

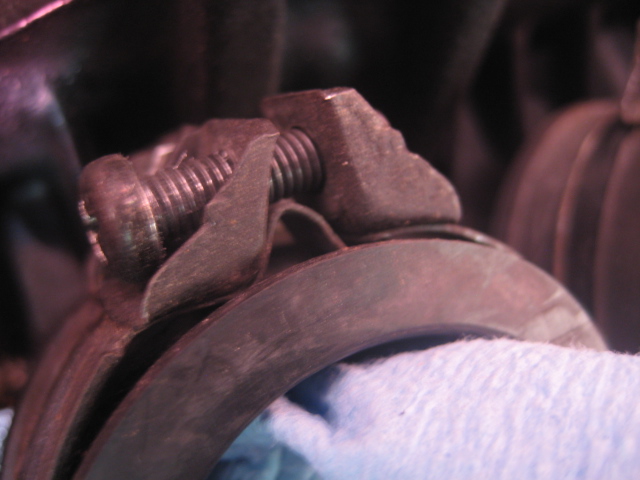

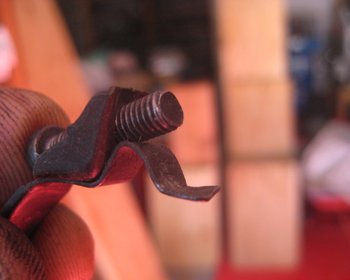

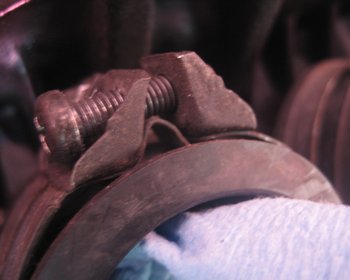

Carb manifold clamp. |
More. |
|

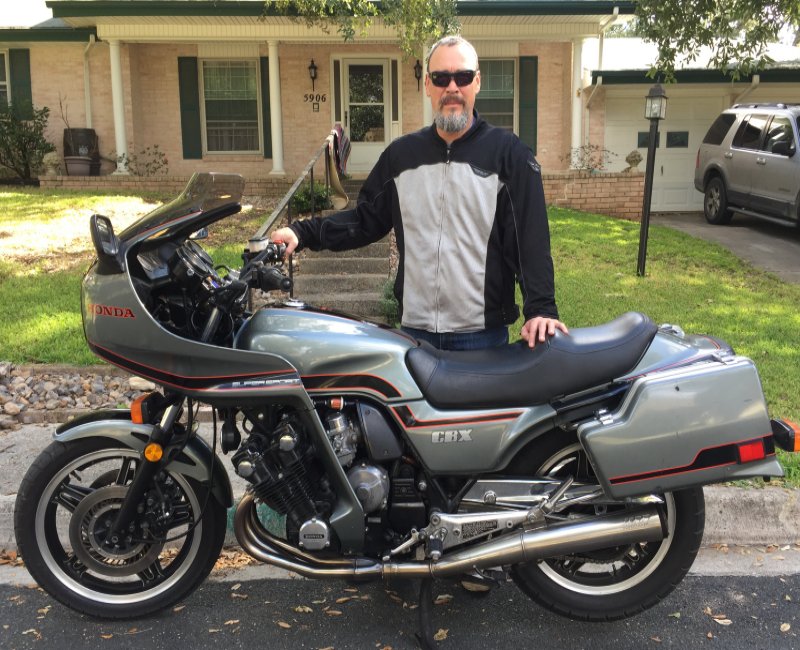

A happy customer. He rode the bike back home to Austin, TX in something less than 24 hours. |
